Technology:
Carbon DLS
Applications:
General purpose prototyping, jigs, fixtures.
Description:
The UMA family contains rigid resins similar to conventional SLA resins.
Features:
Excellent resolution and detail.

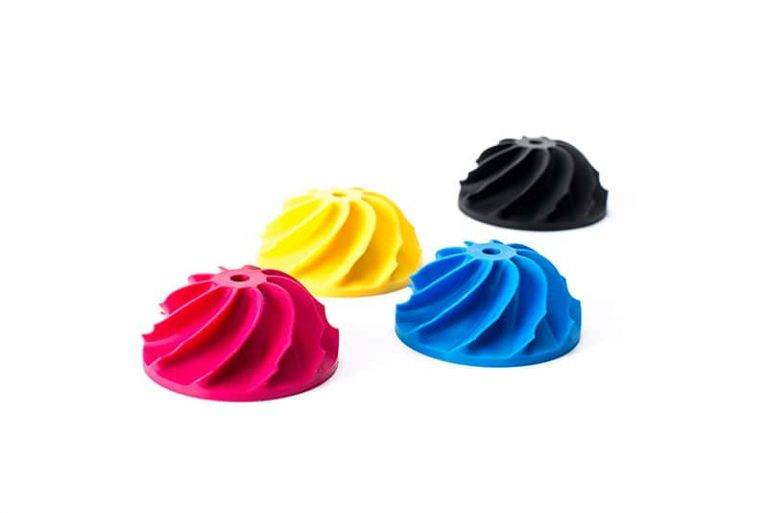

Color Options: CMYK
| Property | ASTM | Metric Units |
|---|---|---|
| Tensile Strength | D638M | 46 ± 3 MPa |
| Modulus of Elasticity, Youngs Modulus | D638M | 2000 ± 100 MPa |
| Elongation at Break (%) | D638M | 17 ± 2% |
| Flexural Strength | D790M | 79 ± 5 MPa |
| Flexural Modulus | D790M | N/A |
| IZOD Impact (notched) | D256A | 33 ± 4 J/m |
| Heat Deflection Temperature @ 0.45 MPa/66 psi, (°C) | D648 | 51°C |
