PerFORM

Applications:

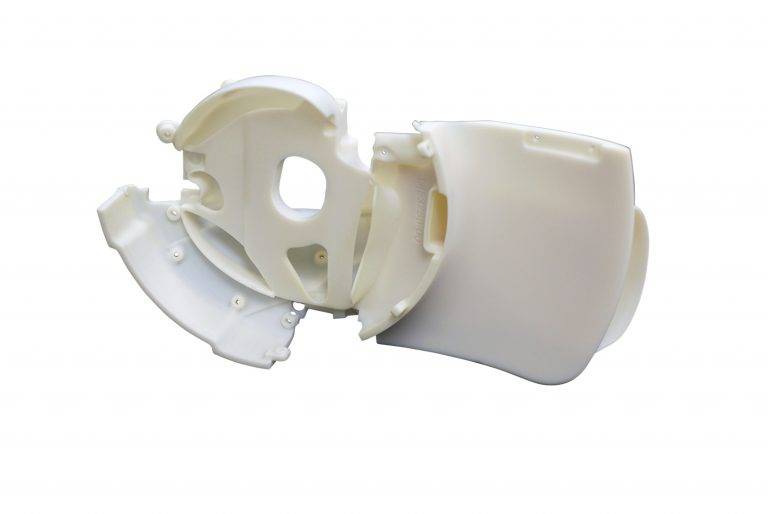

Tooling, wind tunnel testing, automotive housings.

Description:

SLA materials mimic a wide array of engineering plastics, elastomers and composites. With the lowest viscosity of any composite stereolithography material, parts made from perFORM are faster to build and easier to post-process and clean.

Features:

Strong, stiff, excellent detail resolution. High heat tolerance.

Color options: off-white

Technical Data
Property ASTM Metric Units UV Postcure Metric Units UV & Thermal Postcure
Tensile Strength D638M 68 MPA 80 MPa
Modulus of Elasticity, Youngs Modulus D638M 10,500 MPa 9,800 MPa
Elongation at Break (%) D638M 1% 1%
Flexural Strength D790M 120 MPa 146 MPa
Flexural Modulus D790M 10,000 MPa 9,030 MPa
IZOD Impact (notched) D256A 17 J/m 20 J/m
Heat Deflection Temperature
@ 0.45 MPa/66 psi, (°C)
D648 132 °C 268 °C
