ASA

Applications:

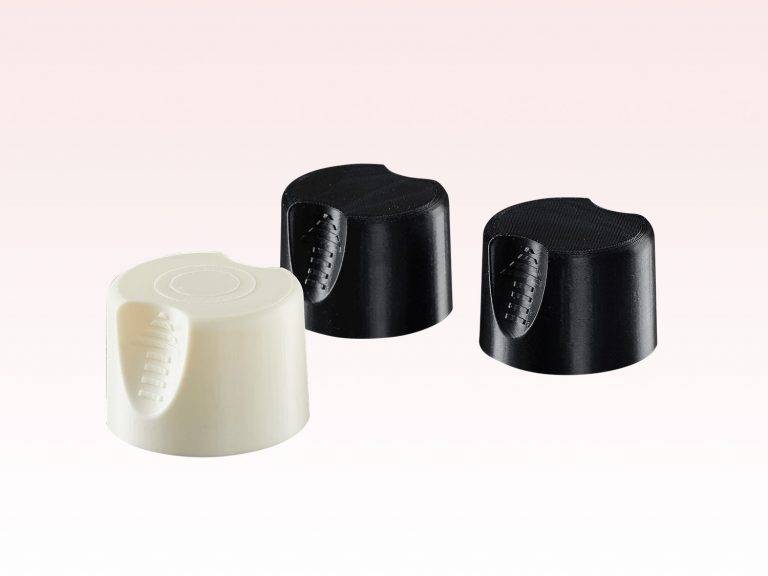

General purpose prototyping, end-use parts, outdoor commercial and infrastructure parts, sporting goods, tools, automotive components and accessories.

Description:

FDM Technology uses the same tried and tested thermoplastics found in traditional manufacturing processes. ASA is a production-grade thermoplastic that combines mechanical strength and UV stability with the best part aesthetics FDM technology has to offer.

Features:

UV stability. High resolution and detail.

Color Options: Black, Dark Blue, Dark Gray, Green, Light Gray, Yellow, White, Orange, Ivory, Red

Technical Data
Property ASTM Metric Units
Tensile Strength D638M 36 MPa
Modulus of Elasticity, Youngs Modulus D638M 2,400 MPa
Elongation at Break (%) D638M 3 %
Flexural Strength D790M 48 MPa
Flexural Modulus D790M 1,630 MPa
IZOD Impact (notched) D256A 64 J/m
Heat Deflection Temperature
@ 0.45 MPa/66 psi, (°C)
D648 98 °C

 Download File
